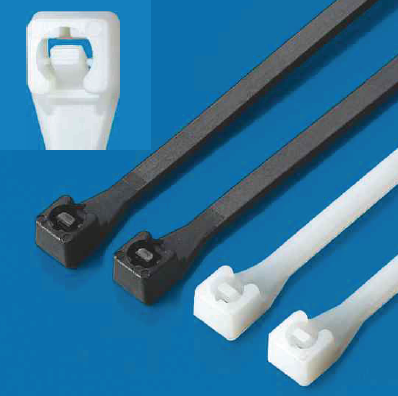

Nylon cable tie HTA series
An enhanced cable tie easy to pass, include the tie body and buckle head, provide passing channel and elastic buckle part, unidirectional and close teeth designed on the back of tie body, the abrasive side of elastic buckle part is coordinated with the teeth, the side of buckle head facing on tie body provide a notch, and two support blocks are set between this side and front side of tie body, laid on two side of notch.
Material: Nylon 66.94V-2 certificated by UL. Heat-resisting, erosion control, insulate well and not apt to age.
Color: Naturalf or white, standard color), UV black and other colors are available as requested.
Note: If the user needs special temperature nylon cable tie. we can supply.
| ITEM NO. | TNCH | MM | (Width) MM | BUNDLE DIAMETER MM | TENSILE STRENGTH | |
| LBS | KGS | |||||
| HTA-2.5X60 | 2.4" | 60 | 2.5 | 2-11 | 22.5 | 10 |
| HTA-2.5X80 | 3.2" | 80 | 2-16 | |||
| HTA-2.5X100 | 4.0" | 100 | 2-22 | |||
| HTA2.5X120 | 4.7" | 120 | 2-30 | |||
| HTA-2.5X150 | 6.0" | 150 | 2-35 | |||
| HTA-2.5X160 | 6.3" | 160 | 2-40 | |||
| HTA-2.5X200 | 8.0 | 200 | 3-50 | |||
| HTA-3.6X110 | 4.3" | 110 | 3.4 | 3-25 | 50 | 22 |
| HTA-3.6X140 | 5.5" | 140 | 3-33 | |||
| HTA-3.6X150 | 6.0" | 150 | 3-35 | |||
| HTA-3.6X180 | 7.1" | 180 | 3-42 | |||
| HTA-3.6X200 | 8.0" | 200 | 3-50 | |||
| HTA-3.6X250 | 10" | 250 | 3-65 | |||
| HTA-3.6X280 | 11" | 280 | 3-70 | |||
| HTA-3.6X300 | 12" | 300 | 3-80 | |||
| HTA-3.6X370 | 14.6" | 370 | 3-105 | |||
| HTA-4.8X120 | 4.7" | 120 | 4.4 | 3-30 | 62.5 | 28 |
| HTA-4.8X160 | 6.3" | 160 | 3-40 | |||
| HTA-4.8X180 | 7.1" | 180 | 3-42 | |||
| HTA-4.8X190 | 7.5" | 190 | 3-46 | |||
| HTA-4.8X200 | 8.0" | 200 | 3-50 | |||
| HTA-4.8X250 | 10" | 250 | 3-65 | |||
| HTA-4.8X280 | 11" | 280 | 3-70 | |||
| HTA-4.8X300 | 12" | 300 | 3-80 | |||
| HTA-4.8X350 | 14" | 350 | 3-90 | |||
| HTA-4.8X360 | 14.2" | 360 | 3-94 | |||
| HTA-4.8X370 | 14.6" | 370 | 3-98 | |||
| HTA-4.8X380 | 15" | 380 | 3-102 | |||
| HTA-4.8X400 | 16" | 400 | 3-105 | |||
| HTA-4.8X430 | 16.9" | 430 | 3-120 | |||
| HTA-4.8X450 | 17.7" | 450 | 3-130 | |||
| HTA-4.8X500 | 19.7" | 500 | 3-150 | |||
| HTA-6X250 | 10" | 250 | 6.0 | 3-65 | 65 | 30 |
| HTA-6X270 | 10.6" | 370 | 3-67 | |||
| HTA-6X300 | 12" | 300 | 3-80 | |||
| HTA-6X400 | 16" | 400 | 3-105 | |||
| HTA-7.2X150 | 6.0" | 150 | 7.2 | 3-35 | 140 | 65 |
| HTA-7.2X200 | 8.0" | 200 | 3-50 | |||
| HTA-7.2X250 | 10" | 250 | 4-65 | |||
| HTA-7.2X280 | 11" | 280 | 4-78 | |||
| HTA-7.2X300 | 12" | 300 | 4-80 | |||
| HTA-7.2X350 | 14" | 350 | 4-90 | |||
| HTA-7.2X370 | 14.6" | 370 | 4-98 | |||
| HTA-7.2X380 | 15" | 380 | 4-100 | |||
| HTA-7.2X400 | 16" | 400 | 4-105 | |||
| HTA-7.2X450 | 18" | 450 | 4-110 | |||
| HTA-7.2X500 | 20" | 500 | 4-150 | |||
| HTA-7.2X530 | 20.9" | 530 | 4-160 | |||
| HTA-7.2X550 | 21.6" | 550 | 4-165 | |||
| HTA-9.0X400 | 16" | 400 | 8.8 | 8-105 | 200 | 90 |
| HTA-9.0X450 | 18" | 450 | 8-118 | |||
| HTA-9.0X500 | 20" | 500 | 8-150 | |||
| HTA-9.0X550 | 21.6" | 550 | 8-160 | |||
| HTA-9.0X600 | 23.6" | 600 | 8-170 | |||
| HTA-9.0X650 | 25.6" | 650 | 8-185 | |||
| HTA-9-.0X720 | 28.3" | 720 | 10-195 | |||
| HTA-9.0X800 | 31.5" | 800 | 10-230 | |||
| HTA-9.0X900 | 35.5" | 900 | 10-265 | |||
| HTA-9.0X100 | 40" | 1000 | 10-300 | |||
| HTA-9.0X1100 | 43.3" | 1100 | 10-335 | |||
| HTA-9.0X1200 | 47.2" | 1200 | 10-370 | |||
| HTA-12X540 | 21.2" | 540 | 12.4 | 8-155 | 290 | 130 |
| HTA-12X650 | 25.6" | 650 | 14-185 | |||
| HTA-12X900 | 35.5" | 900 | 14-265 | |||
