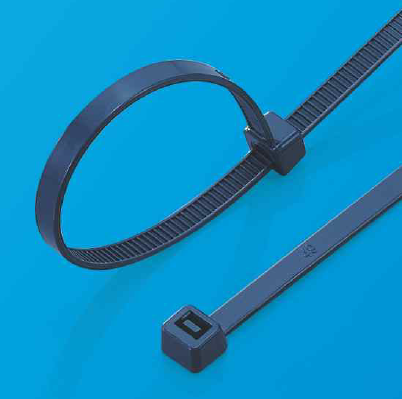

Nylon cable tie MD series
An enhanced cable tie easy to pass, include the tie body and buckle head, provide passing channel and elastic buckle part, unidirectional and close teeth designed on the back of tie body, the abrasive side of elastic buckle part is coordinated with the teeth, the side of buckle head facing on tie body provide a notch, and two support blocks are set between this side and front side of tie body, laid on two side of notch.
Material : UL94HB flame rated Nylon 66 with metal powder.
Application temperature : -30°C~120°C
Installation temperature : -30°C~120°C

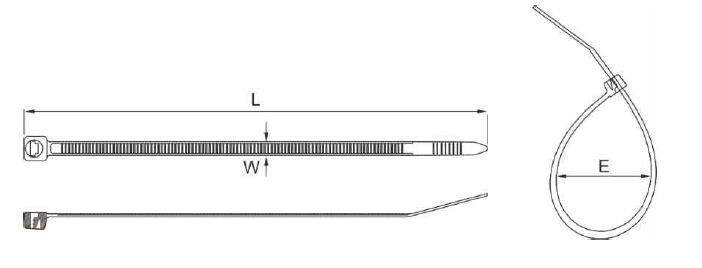

| ITEM NO. | TNCH | MM | (Width)MM | BUNDLEDIAMETER MM | TENSILE STRENGTH | |
| LBS | KGS | |||||
| HT-3X100MD | 4" | 100 | 2.5 | 22 | 18 | 8 |
| HT-4X150MD | 6" | 150 | 3.6 | 35 | 40 | 18 |
| HT-4X200MD | 8" | 200 | 53 | |||
| HT-5X200MD | 8" | 200 | 4.8 | 50 | 22 | |
| HT-5X250MD | 10" | 250 | 65 | |||
| HT-5X300MD | 11 5/8" | 300 | 82 | |||
| HT-5X380MD | 15" | 380 | 105 | |||
| HT-8X300MD | 11 5/8" | 300 | 7.6 | 80 | 120 | 55 |
| HT-8X350MD | 13 3/4" | 350 | 90 | |||
| HT-8X400MD | 15 3/4" | 400 | 105 | |||
| HT-8X500MD | 19 11/16" | 500 | 145 | |||
Feature : Apply for Food and Medical industrial, can be detected by Metal sensor.
